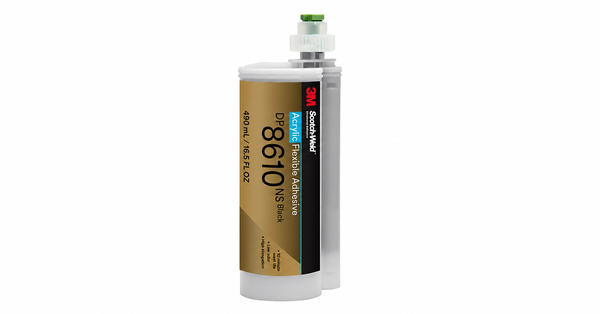

3M DP8610NS
Harmonization Code : 3907.30.00.40 | Epoxy Mold Compounds containing by weight more than 70 % silicon dioxide
Main features
- Flexible Dissimilar Material Bonding
- Non Sag Bondline Control
- Fast Handling Strength Development
Product Description
3M Scotch-Weld Flexible Acrylic Adhesive DP8610NS is a black, low-odor, non-flammable two-part acrylic structural adhesive with a 10:1 mix ratio. The non-sag formulation and internal spacer beads support controlled bondline placement on panels, frames, thin materials, and dissimilar substrates. A 7 minute work life and 20 minute handling-strength time support fast room-temperature assembly. After cure, the flexible adhesive provides 140% elongation and qualified overlap-shear performance across metals, plastics, and fiber-reinforced composites for efficient industrial panel assembly.
Key features
- Flexible Dissimilar Material Bonding: The acrylic system bonds compatible metals, plastics, and composite panels.
- Non Sag Bondline Control: Thixotropic flow and spacer beads support consistent adhesive placement.
- Fast Handling Strength Development: The mixed adhesive reaches handling strength in about 20 minutes at 23 deg C.
Applications
Panel and frame bonding, thin-panel assembly, and joining compatible dissimilar substrates in transportation and industrial structures.
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Mix ratio by volume | 10:1 | B:A | Two-part system |
| Mix ratio by weight | 10:1 | B:A | Two-part system |
| Base color | Black | - | Before mixing |
| Accelerator color | Gray | - | Before mixing |
| Base viscosity | 35000 to 100000 | cP | At 23 deg C; cone-and-plate, 4 sec^-1 |
| Accelerator viscosity | 8000 to 18000 | cP | At 23 deg C; cone-and-plate, 4 sec^-1 |
| Work life | 7 | min | Mixed adhesive |
| Open time | 8 | min | Before closing and fixing the bond |
After-processing / final-state properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Color | Black | - | Cured |
| Modulus | 25 | MPa | ASTM D638 / ISO 527 at 23 deg C |
| Elongation at break | 140 | % | ASTM D638 / ISO 527 after 7 days |
| Hardness | 38 | Shore D | ASTM D2240 at 23 deg C |
| Overlap shear on aluminum | 6.8 | MPa | ASTM D1002; MEK, abrade, MEK; 72 h at 23 deg C |
| Overlap shear on fiber-reinforced epoxy | 10.1 | MPa | ASTM D1002; MEK, abrade, MEK; 72 h at 23 deg C |
| Bell peel on aluminum | 11 | N/mm | ASTM D3167; light abrasion and solvent clean |
