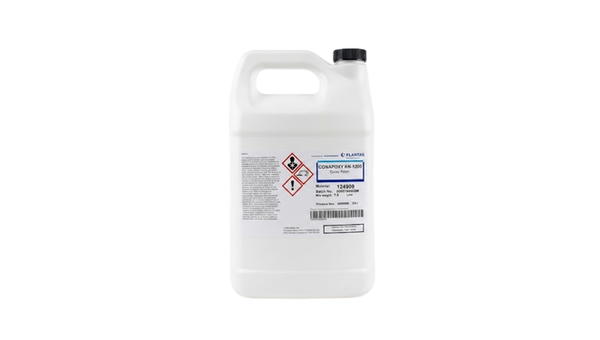

CONAPOXY RN-1200
Harmonization Code : 3910.00.00.90 | Silicones in Primary Forms; Others
Main features
- Undiluted Unfilled Epoxy Resin
- 10,000 cP Resin Viscosity
- Selectable CONACURE Hardener Options
Product Description
CONAPOXY RN-1200 Epoxy Resin is an undiluted, unfilled epoxy resin component for electrical and electronic potting and casting systems. Its 10,000 cP viscosity at 25 deg C supports processing where a relatively fluid resin is needed. The resin is used with a separately selected CONACURE hardener, allowing the complete system to be matched to working-life, flexibility and cure requirements. Because the hardener determines the mix ratio, cure schedule and final properties, RN-1200 should be evaluated as the resin component rather than as a complete cured system.
Key features
- Undiluted Epoxy Resin: provides an unfilled resin base for potting and casting systems
- 10,000 cP Viscosity: supports relatively fluid processing at 25 deg C
- Selectable CONACURE Hardeners: allows working life and cured behavior to be matched to the application
Applications
Resin component for electrical and electronic potting or casting systems using a compatible CONACURE hardener.
TDS, SDS & Technical Documents
Technical Specifications
Physical Properties
General Properties
Thermal Properties
Additional Information
POTTING & ENCAPSULATION
CONAPOXY® RN-1200 two-component epoxy potting system
CONAPOXY® RN-1200 is an unfilled, two-component epoxy potting system for potting and encapsulation of electrical and electronic devices such as modules, transformers and coils. The RN-1200 Resin is combined with a selected CONACURE® hardener to provide different processing windows and cured-property profiles.
KEY CHARACTERISTICS
Electrical insulation with configurable processing and cured properties
Selecting the hardener changes the RN-1200 system's processing window and final material properties while retaining the same RN-1200 epoxy resin base.
Low exotherm and shrinkage
The unfilled epoxy system is formulated for low exotherm and low shrinkage during potting and casting.
Thermal shock resistance
RN-1200 systems provide thermal shock resistance, with the EA-028 system specifically identified for very good thermal shock resistance.
Electrical insulation
The cured systems provide good electrical properties with very good arc resistance and typical dielectric strength of 350 V/mil.
Flexible curative selection
EA-02, EA-028 and EA-87 provide different pot-life, viscosity, flexibility and cure characteristics for process selection.
SYSTEM SELECTION
Select the CONACURE® hardener for the required process window
RN-1200 Resin can be combined with EA-02, EA-028 or EA-87 Hardener. Each pairing remains a distinct two-component formulation with its own mix ratio and processing characteristics.
| Hardener | Processing characteristics | Pot / work time | Mix ratio by weight RN-1200 : Hardener |
Mix ratio by volume RN-1200 : Hardener |
|---|---|---|---|---|
| CONACURE® EA-02 | Room-temperature cure, low viscosity and rigid castings | 30 min work time | 100 : 11 | 100 : 13 |
| CONACURE® EA-028 | Limited flexibility, low viscosity, room-temperature thin-film cure and very good thermal shock resistance | 30 min pot life | 100 : 28 | 100 : 32 |
| CONACURE® EA-87 | Limited flexibility and low viscosity; heat is required to cure thin films | 90 min pot life | 100 : 37 | 100 : 45 |
AS-SUPPLIED PROPERTIES
RN-1200 Resin and compatible hardener properties
Component properties are shown separately before mixing. Viscosity and specific gravity values apply at 25°C / 77°F.
| Property | RN-1200 Resin | EA-02 Hardener | EA-028 Hardener | EA-87 Hardener |
|---|---|---|---|---|
| Viscosity at 25°C / 77°F | 10,000 cP | 55 cP | 40 cP | 60 cP |
| Specific gravity at 25°C / 77°F | 1.16 | 0.98 | 1.00 | 0.96 |
| Color | Amber | Amber | Amber | Light amber |
| Flash point, ASTM D93 | >94°C / >201°F | >94°C / >201°F | >94°C / >201°F | >94°C / >201°F |
Values are typical and are not intended for specification use.
MIXED MATERIAL PROPERTIES
Initial viscosity and gel time by hardener
Mixed-system viscosity and gel time vary with the selected hardener. The values below apply at 25°C / 77°F.
| Property | RN-1200 + EA-02 | RN-1200 + EA-028 | RN-1200 + EA-87 |
|---|---|---|---|
| Initial viscosity | 3,000 cP | 1,500 cP | 1,500 cP |
| Gel time | 30 min | 40 min | 60 min |
Pot life, work time and gel time are separate processing characteristics and should not be treated as interchangeable.
ELECTRICAL PERFORMANCE
Typical cured-system electrical properties
| Property | Method / condition | EA-02 | EA-028 | EA-87 |
|---|---|---|---|---|
| Dielectric strength | ASTM D149, 25°C / 77°F | 350 V/mil | 350 V/mil | 350 V/mil |
| Dielectric constant | ASTM D150, 1 kHz at 25°C | 3.5 | 4.7 | 5.0 |
| Dissipation factor | ASTM D150, 1 kHz at 25°C | 0.017 | 0.001 | 0.035 |
| Volume resistivity | ASTM D257 | 2.0 × 1014 ohm-cm | 4.0 × 1012 ohm-cm | 4.2 × 1015 ohm-cm |
| Surface resistivity | ASTM D257 | 2.4 × 1015 ohms/sq. | 1.0 × 1015 ohms/sq. | 8.8 × 1015 ohms/sq. |
Values are typical and are not intended for specification use.
CURED PHYSICAL PROPERTIES
Mechanical and thermal properties by hardener
| Property | Method / condition | EA-02 | EA-028 | EA-87 |
|---|---|---|---|---|
| Shore hardness | ASTM D2240, 25°C / 77°F | D 84 | D 84 | D 85 |
| Tensile strength | ASTM D412, 25°C / 77°F | 10,000 psi | 7,600 psi | 8,100 psi |
| Compressive strength | ASTM D695, 25°C / 77°F | 18,000 psi | 12,000 psi | 13,500 psi |
| Linear shrinkage | MIL-M-24041C, 25°C / 77°F | 1.1% | 1.2% | 0.8% |
| Glass transition temperature | DSC | 85°C / 185°F | 70°C / 158°F | 85°C / 185°F |
| Coefficient of thermal expansion | Typical | 55 ppm/°C | 55 ppm/°C | 55 ppm/°C |
| Thermal conductivity | Typical | 0.2 W/m·K | 0.2 W/m·K | 0.2 W/m·K |
Values are typical and are not intended for specification use. Final properties remain specific to the selected RN-1200 / CONACURE® hardener pairing.
PROCESSING
Mixing, viscosity adjustment and degassing
- Select EA-02, EA-028 or EA-87 Hardener for the intended RN-1200 formulation.
- Mix RN-1200 Resin and the selected hardener at the specified weight or volume ratio until homogeneous.
- Components may be preheated up to 60°C when reduced viscosity is required.
- For hand mixing, degas the mixed material at greater than 27 in. Hg vacuum before use.
Recommended cure schedule
Room-temperature cure: 24 hours at 25°C / 77°F
Heat cure: 2 hours at 60°C / 140°F
Cure time begins after the unit reaches the specified temperature. Cure schedules are recommendations, and optimum conditions should be established for the specific application.
APPLICATIONS
Potting and encapsulation of electrical and electronic devices
RN-1200 systems are used for potting and encapsulation applications including modules, transformers and coils.
Electrical modules
Potting and encapsulation of electrical and electronic module assemblies.
Transformers
Electrical insulation and encapsulation of transformer assemblies.
Coils
Potting and encapsulation of electrical coil assemblies.
APPLICATION METHODS
Bench and vacuum potting processes
STORAGE & HANDLING
Protect components from heat, sunlight and atmospheric moisture
Store at or below 25°C / 77°F in a dry, controlled environment out of direct sunlight.
Under these conditions, material in the original sealed containers should be suitable for use for twelve months from the date of shipment.
Moisture-sensitive handling
The product is sensitive to moisture and atmospheric humidity. Once opened, containers should be used immediately or blanketed with dry air or nitrogen before resealing.
Mix and degas individual components thoroughly before use.
Discuss your RN-1200 application with Krayden
Share your application, processing method, required working time and cured-property priorities to evaluate the appropriate RN-1200 and CONACURE® hardener combination.
