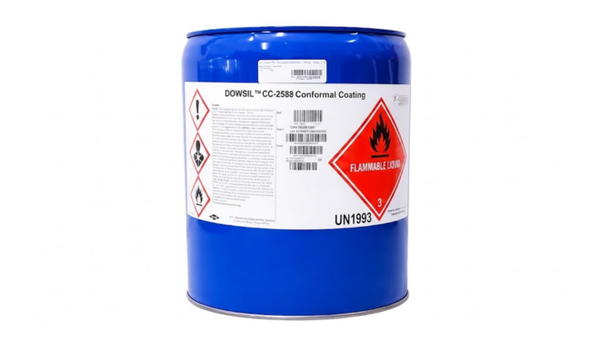

DOWSIL CC-2588
Harmonization Code : 8001.20 | Unwrought tin: Tin alloys
Main features
- Five-Minute Tack-Free Processing
- 22.3 kV/mm Dielectric Strength
- Firm Abrasion-Resistant Cure
Product Description
DOWSIL CC-2588 Conformal Coating applies as a one-part, transparent, medium-viscosity silicone resin coating for rigid and flexible circuit boards. The colorless-to-pale-yellow liquid has a typical Brookfield viscosity of 930 cP, 88% nonvolatile content and a five-minute tack-free time at 25 deg C and 50% relative humidity. After cure, it forms a firm, abrasion-resistant surface with Shore A 75 hardness, 22.3 kV/mm dielectric strength and 5.04 MPa tensile strength. Spray, brush, flow, dip and automated pattern coating are supported, with solvent flash-off and cure conditions controlled for the applied film thickness.
Key features
- Five-minute tack-free time: Supports rapid room-temperature handling at 25 deg C and 50% relative humidity.
- High-solids application: Typical nonvolatile content is 88%.
- Firm dielectric coating: Cured hardness is Shore A 75 with 22.3 kV/mm dielectric strength.
Applications
Protective conformal coating of rigid and flexible circuit boards and printed wiring boards.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Mechanical Properties
Electrical Properties
Additional Information
As-supplied / before-processing properties
Typical as-supplied and process properties. Values are not specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Component count | One-part | As supplied | |
| Color | Colorless to pale yellow liquid | CTM0176 | |
| Viscosity | 930 | cP | CTM0050; Brookfield LV, spindle #2 at 10 rpm |
| Specific gravity | 1.06 | Uncured; CTM0097 | |
| Tack-free time | 5 | min | At 25 deg C and 50% RH; CTM0098 |
| Nonvolatile content | 88 | % | CTM0208; forced-draft volatility |
| Typical cure schedule | 10 min RT + 10 min at 60 deg C | 3 mil (75 um) coating after solvent flash-off |
After-processing / final-state properties
Typical cured coating properties. Values are not specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Specific gravity | 1.11 | Cured; CTM0540 | |
| Durometer hardness | 75 | Shore A | CTM0099 |
| Dielectric strength | 22.3 | kV/mm | CTM0114 |
| Tensile strength | 5.04 | MPa | CTM0137A |
| Elongation | 233 | % | CTM0137A |
| Volume resistivity | 2.4E15 | ohm cm | CTM0249 |
| Glass transition temperature | -117 | deg C | DMA |
| Coefficient of thermal expansion | 180 | ppm | CTM0563 |
