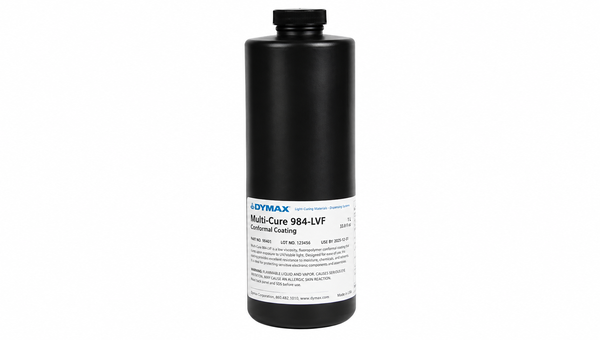

DYMAX 984-LVF
Harmonization Code : 3910.00.00.90 | Silicones in Primary Forms; Others
Main features
- One-Part 100% Solids Application
- UV and Shadow-Area Heat Cure
- Fluorescent Coating Coverage Inspection
Product Description
Dymax Multi-Cure 984-LVF Conformal Coating is a single-component, 100% solids conformal coating for electronic assemblies. UV light cures exposed areas, while secondary heat cure addresses material in shadowed regions. The fluorescent response helps operators confirm coverage after application, and the one-part format avoids mixing before dispense. The coating is suited to metal, ceramic, and glass-filled epoxy surfaces within electronic assemblies, forming a protective layer without solvent evaporation. Its combined cure routes support complex geometry where not every coated area receives direct light.
Key features
- One-Part 100% Solids Application: The coating requires no component mixing and cures without solvent evaporation.
- Dual Cure for Complex Geometry: UV cure is complemented by secondary heat cure in shadowed areas.
- Fluorescent Coverage Check: Fluorescence supports visual confirmation of the applied coating.
Applications / Suitable for
- Conformal coating on metal surfaces
- Conformal coating on ceramic surfaces
- Conformal coating on glass-filled epoxy surfaces
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Mechanical Properties
Chemical Properties
Other Properties
Additional Information
As-supplied / before-processing properties
As-supplied characteristics used for material and process evaluation. Numerical values are typical unless otherwise identified.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Solids content | 100 | % | As supplied |
| Component count | One-part | - | As supplied |
| Primary cure | UV light | - | Directly exposed coating |
| Secondary cure | Heat | - | Shadowed areas |
| Inspection response | Fluorescent | - | Applied or cured coating under inspection light |
