ELANTAS RN-1501
Harmonization Code : 3910.00.00.90 | Silicones in Primary Forms; Others
Main features
- Heat-Reduced Resin Viscosity
- Three-Minute Meter-Mix Window
- High-Elongation Cast Elastomer
Product Description

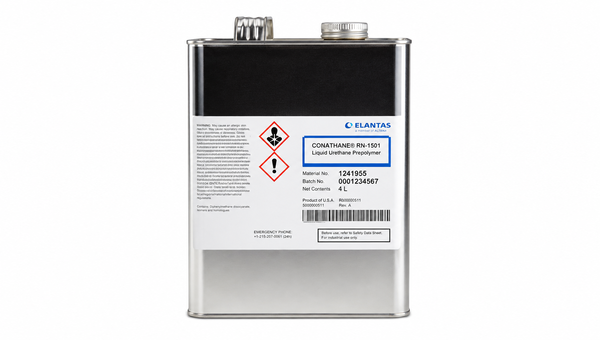

CONATHANE RN-1501 Liquid Urethane Prepolymer is a PTMEG polyether liquid urethane prepolymer for producing flexible cast elastomers. Typical viscosity decreases from 17,000 cP at 25 deg C to 500 cP at 100 deg C, providing a defined temperature-dependent processing profile. With CONACURE AH-40 at 100/12.5 parts by weight, the system has a 3-minute work life and forms a Shore A 90 elastomer with 7,500 psi tensile strength and 520% elongation. Applications include industrial truck tires, rolls, gears, die pads, and abrasion-resistant belts.
Key features
- Temperature-Dependent Viscosity: Typical viscosity decreases from 17,000 cP at 25 deg C to 500 cP at 100 deg C.
- Three-Minute Work Life: The RN-1501 and CONACURE AH-40 configuration has a 3-minute mixed work life.
- High-Elongation Elastomer: The specified curative system reaches 520% elongation with Shore A 90 hardness.
Applications / Suitable for
- Industrial truck tires
- Rolls, gears, and die pads
- Abrasion-resistant belts
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Additional Information
As-supplied / before-processing properties
Typical resin and process data for RN-1501 with the specified CONACURE AH-40 configuration.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| NCO content | 4.10 to 4.40 | % | Typical RN-1501 resin |
| Specific gravity | 1.06 | - | RN-1501 at 25 deg C |
| Viscosity | 17,000 | cP | RN-1501 at 25 deg C |
| Viscosity | 500 | cP | RN-1501 at 100 deg C |
| Mix ratio | 100/12.5 | parts by weight | RN-1501 / CONACURE AH-40 |
| Work life | 3 | minutes | RN-1501 with CONACURE AH-40 |
| Demold time | 45 | minutes | Mold at 60 deg C; RN-1501 with CONACURE AH-40 |
| Cure and post-cure | 4 + 16 | hours | Cure 4 hours at 100 deg C; post-cure 16 hours at 100 deg C |
After-processing / final-state properties
Typical cured-elastomer properties for RN-1501 combined with CONACURE AH-40 at 100/12.5 parts by weight.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Hardness | 90 | Shore A | RN-1501 / CONACURE AH-40 |
| Tensile strength | 7,500 | psi | RN-1501 / CONACURE AH-40 |
| 100% modulus | 1,050 | psi | RN-1501 / CONACURE AH-40 |
| 300% modulus | 1,650 | psi | RN-1501 / CONACURE AH-40 |
| Tear strength | 400 | pli | Die C; RN-1501 / CONACURE AH-40 |
| Elongation | 520 | % | RN-1501 / CONACURE AH-40 |
| Specific gravity | 1.10 | - | Cured elastomer at 25 deg C |
