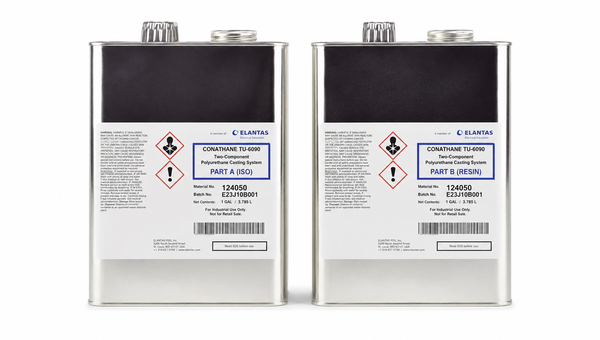

ELANTAS TU-6090
Harmonization Code : 3910.00.00.90 | Silicones in Primary Forms; Others
Main features
- Equal-Volume Two-Part Mixing
- Fifteen-to-Twenty-Minute Work Life
- Shore A 90 Tooling Elastomer
Product Description
CONATHANE TU-6090 Two-Component Polyurethane Casting System is an unfilled, 100% solids two-component polyurethane tooling elastomer for casting flexible parts. Part A and Part B are mixed at 100/50 by weight or volume, producing a typical mixed viscosity of 3,100 cP at 25 deg C and a 15 to 20 minute work life. The system cures for 7 to 10 days at 25 deg C or 16 hours at 60 deg C. The cured elastomer reaches Shore A 90 hardness, 2,850 psi tensile strength, and 335% elongation.
Key features
- Equal Weight-or-Volume Ratio: The 100/50 mix ratio applies by weight and by volume.
- Fifteen-to-Twenty-Minute Work Life: The mixed system has a typical 15 to 20 minute processing window at 25 deg C.
- Shore A 90 Elastomer: The cured tooling elastomer combines Shore A 90 hardness with 335% elongation.
Applications / Suitable for
- Industrial wheels and rolls
- Metal-forming pads and flexible molds
- Washers, gaskets, bushings, and vibration-dampening pads
TDS, SDS & Technical Documents
Technical Specifications
General Properties
AppearanceAppearance
light amberMechanical Properties
ElongationElongation
335 %Additional Information
Technical properties
As-supplied / before-processing properties
Typical component, mixing, degassing, work-life, and cure data for TU-6090.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Component viscosity | Part A: 4,000; Part B: 1,350 | cP | Typical at 25 deg C |
| Component specific gravity | Part A: 1.04; Part B: 1.05 | - | Typical at 25 deg C |
| Mix ratio | 100/50 | parts | Part A / Part B; by weight or by volume |
| Initial mixed viscosity | 3,100 | cP | Typical at 25 deg C |
| Work life | 15 to 20 | minutes | Typical at 25 deg C |
| Component preheat | Up to 60 | deg C | Optional processing aid before mixing |
| Vacuum degassing | >27 | in Hg | Recommended after mixing when degassing is used |
| Cure schedule | 7 to 10 days or 16 hours | - | At 25 deg C or 60 deg C |
Technical properties
After-processing / final-state properties
Typical cured mechanical properties for the TU-6090 tooling elastomer.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Hardness | 90 | Shore A | Typical cured property |
| Tensile strength | 2,850 | psi | Typical cured property |
| 100% modulus | 1,000 | psi | Typical cured property |
| 300% modulus | 2,800 | psi | Typical cured property |
| Elongation | 335 | % | Typical cured property |
| Tear strength | 390 | pli | Typical cured property |
