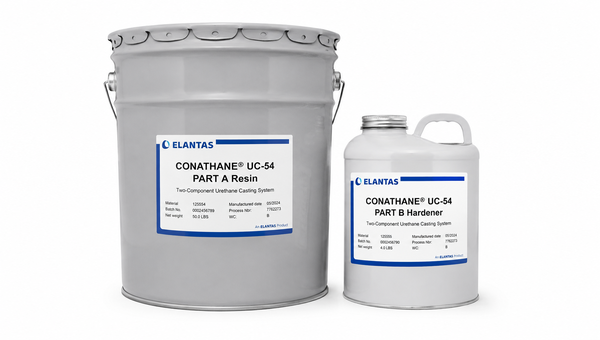

ELANTAS UC-54
Harmonization Code : 3403.19 | Lubricating Preparations (With 70% or More Petroleum Oils) For Automotive and Other Uses
Main features
- Direct 100% Solids Mold Filling
- Tough High-Impact Prototypes
- Thermoplastic-Style Surface and Feel
Product Description
CONATHANE UC-54 Two-Component Casting Urethane is an unfilled, 100% solids two-component urethane for castings and prototype parts. The reactive liquid system forms tough, high-impact, dimensionally stable components with a thermoplastic-like feel and appearance. Its 100% solids formulation supports direct mold filling after the two components are combined, while the casting route provides a practical way to produce prototype and molded urethane shapes. UC-54 is suited to cast parts where impact response, dimensional stability, and a thermoplastic-style surface are important selection factors.
Key features
- 100% Solids Casting: The unfilled material is supplied as a 100% solids two-component casting system.
- Tough Prototype Parts: UC-54 is positioned for tough, high-impact castings and prototypes.
- Thermoplastic-Like Finish: The cured material provides a thermoplastic-style feel and appearance.
Applications / Suitable for
- Prototype urethane parts
- Tough, high-impact castings
- Castings requiring thermoplastic-like feel and appearance
TDS, SDS & Technical Documents
Technical Specifications
Thermal Properties
General Properties
Mechanical Properties
Additional Information
As-supplied / before-processing properties
Typical properties of CONATHANE® UC-54 components and mixed material prior to cure.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Viscosity | 500 / 2,000 | cP | Part A / Part B at 25°C |
| Specific Gravity | 1.18 / 1.08 | - | Part A / Part B at 25°C |
| Mix Ratio | 100 : 50 | Parts by weight | Part A : Part B |
| Mixed Viscosity (Initial) | 1,200 | cP | Mixed material at 25°C |
| Work Life | 45 | minutes | 200 g mass at 25°C |
After-processing / final-state properties
Typical cured-material physical properties following the recommended cure schedule.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Shore Hardness | D85 | Shore D | ASTM D2240, 25°C |
| Tensile Strength | 12,260 | psi | ASTM D412, 25°C |
| Ultimate Elongation | 8 | % | ASTM D638, 25°C |
| Glass Transition Temperature | 98 | °C | Typical value |
| Linear Shrinkage | 0.45 | % | ASTM D2566, 16 h at 80°C |
