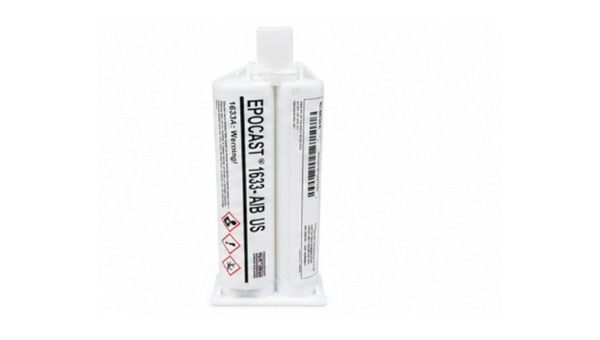

EPOCAST 1633
Harmonization Code : 3910.00.00.90 | Silicones in Primary Forms; Others
Main features
- Non-Flowing Cartridge Application
- Flexible Room-Temperature or Heat Cure
- Honeycomb Fastener Potting
Product Description
EPOCAST 1633 A/B Epoxy Syntactic is a two-component, halogen-free, self-extinguishing medium-paste compound for potting fasteners in honeycomb structures. The system is non-flowing and cartridge-capable, supporting controlled placement in localized potting areas. Part A and Part B mix at 100:50 by weight and may be cured for three days at room temperature or with shorter elevated-temperature schedules after room-temperature gel. Typical cured compressive strength is 6,500 psi, with 1,400 psi tensile lap shear under the stated conditions.
Key features
- Non-flowing cartridge application: The medium-paste system is cartridge-capable and remains in place after dispensing.
- Flexible cure schedules: The system supports room-temperature cure or shorter elevated-temperature cycles after gel.
- Cured mechanical strength: Typical cured compressive strength is 6,500 psi with 1,400 psi tensile lap shear.
Applications
- Potting fasteners in honeycomb structures
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Additional Information
As-supplied / before-processing properties
Typical as-received and storage data for the two-component system.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance | Medium paste | - | As supplied |
| Flow behavior | Non-flowing | - | As supplied |
| Mix ratio by weight | 100:50 | - | Part A:Part B |
| Storage temperature | 60 to 90 | deg F | Original sealed containers |
| Shelf life | 12 | months | Under the stated storage conditions |
| Application format | Cartridge-capable | - | Medium-paste system |
After-processing / final-state properties
Typical cured properties and cure options for EPOCAST 1633 A/B.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Cure schedule | 3 days at room temperature; or room-temperature gel plus 5 h at 49 deg C; or 2 h at 66 deg C | - | Typical cure options |
| Compressive strength | 6,500 | psi | Typical cured material |
| Tensile lap shear | 1,400 | psi | Typical cured material |
| Flammability | Self-extinguishing | - | Cured epoxy syntactic |
