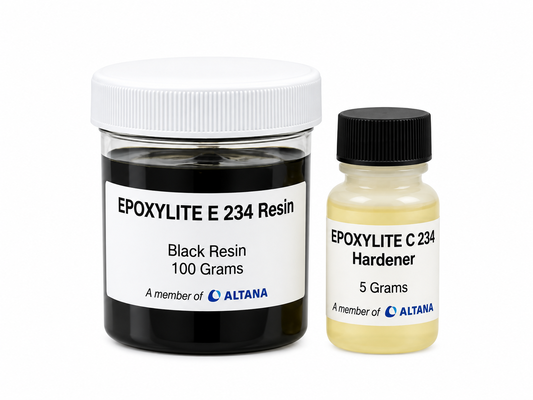

EPOXYLITE E234
Harmonization Code : 3910.00.00.90 | Silicones in Primary Forms; Others
Main features
- Low-Temperature Trickle Impregnation
- 15-25 Minute Gel Window
- Class 155 Electrical Insulation
Product Description
EPOXYLITE E234 Two-Component Epoxy Impregnating Resin is a 100% solids, two-component epoxy system for low-temperature trickle impregnation of motor and transformer windings. The E234 resin and C234 hardener mix at 100:20 by weight or 100:22.3 by volume, producing a typical mixed viscosity of 800 to 1,800 cP and a 15 to 25 minute gel time. The cured system is associated with Class 155 electrical insulation and typical dielectric strength of 1,200 volts/mil. Supported uses include high-speed armatures, appliance motors, transformers, and other high-speed rotating equipment.
Key features
- Low-temperature trickle impregnation: The mixed system is formulated for motor and transformer winding impregnation with a 15 to 25 minute gel time.
- Controlled component mixing: The documented mix ratio is 100:20 by weight or 100:22.3 by volume.
- Class 155 electrical insulation: Typical cured data include Shore D 87 and dielectric strength of 1,200 volts/mil.
Applications
- Trickle impregnation of motor windings
- Trickle impregnation of transformer windings
- High-speed armatures
- Appliance motors and high-speed rotating equipment
TDS, SDS & Technical Documents
Technical Specifications
Physical Properties
Thermal Properties
Chemical Properties
Electrical Properties
Additional Information
As-supplied / before-processing properties
Typical component and mixed-system values for the E234 resin and C234 hardener before cure.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Resin viscosity | 1,000 to 2,000 | cP | E234 resin as supplied |
| Hardener viscosity | 100 to 500 | cP | C234 hardener as supplied |
| Mix ratio by weight | 100:20 | - | E234 resin:C234 hardener |
| Mix ratio by volume | 100:22.3 | - | E234 resin:C234 hardener |
| Mixed viscosity | 800 to 1,800 | cP | Mixed system |
| Gel time | 15 to 25 | min | Mixed system |
After-processing / final-state properties
Typical final-state values for the cured impregnating-resin system.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Thermal class | 155 | deg C | Electrical insulation classification stated for the system |
| Post-cure | 15 | min | At 100 deg C |
| Shore D hardness | 87 | - | Typical cured value |
| Dielectric strength | 1,200 | volts/mil | Typical cured value |
| Volume resistivity | 8.0 x 10^14 | ohm cm | Typical cured value |
