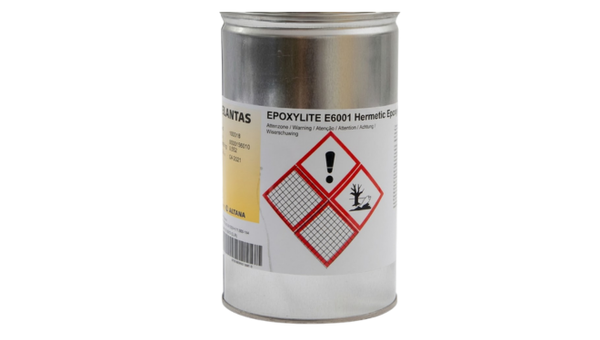

EPOXYLITE E6001
Harmonization Code : 3910.00.00.90 | Silicones in Primary Forms; Others
Main features
- Low-Viscosity Winding Impregnation
- Fast 30-Minute Heat Cure
- Hermetic Compressor Insulation
Product Description
EPOXYLITE E6001 Hermetic Epoxy Impregnating Resin is a solvent-borne epoxy insulating varnish for dip-and-bake impregnation of motor windings used in hermetic compressors and refrigeration equipment. The clear amber liquid has 36 to 40% nonvolatile content, typical viscosity of 100 to 200 cP, and a flash point of 13 deg C. stated cure options include two hours at 77 deg C followed by six hours at 135 deg C, or 30 minutes at 177 deg C. The product supports winding impregnation where a low-viscosity epoxy varnish and controlled thermal cure are required.
Key features
- Low-viscosity winding impregnation: Typical viscosity is 100 to 200 cP in the as-supplied clear amber liquid.
- Controlled nonvolatile content: The varnish contains 36 to 40% nonvolatile material.
- Heat-cure flexibility: Documented cure options include a staged 77/135 deg C cycle or 30 minutes at 177 deg C.
Applications
- Motor-winding impregnation for hermetic compressors
- Motor-winding impregnation for refrigeration units
- Dip-and-bake insulating varnish applications
TDS, SDS & Technical Documents
Technical Specifications
General Properties
AppearanceAppearance
clear amber liquidPhysical Properties
ViscosityViscosity
100-200 mPa.sThermal Properties
Flash PointFlash Point
13 °CElectrical Properties
Dielectric StrengthDielectric Strength
157.48 kV/mmAdditional Information
Technical properties
As-supplied / before-processing properties
Typical as-supplied values for the solvent-borne epoxy insulating varnish.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance | Clear amber liquid | - | As supplied |
| Nonvolatile content | 36 to 40 | % | As supplied |
| Viscosity | 100 to 200 | cP | As supplied |
| Weight per gallon | 8.2 to 8.5 | lb/gal | As supplied |
| Flash point | 13 | deg C | Equivalent to 55 deg F |
| Volatile organic content | 5.2 | lb/gal | As supplied |
