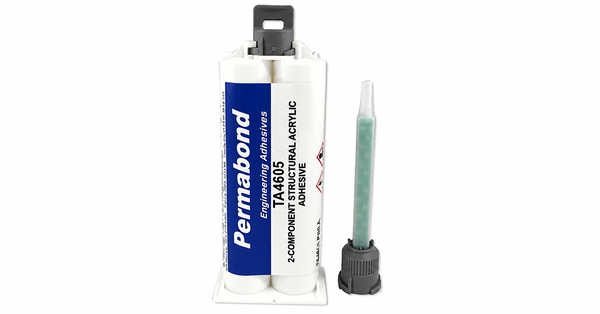

PERMABOND TA4605
Harmonization Code : 3907.30.00.40 | Epoxy Mold Compounds containing by weight more than 70 % silicon dioxide
Main features
- Primer-Free Polyolefin Bonding
- Controlled 1 mm Gap Filling
- Fast Handling-Strength Development
Product Description
Permabond TA4605 is a two-part, 1:1 toughened acrylic adhesive for bonding low-surface-energy plastics, including polypropylene and polyethylene, without primer or surface treatment. The thixotropic system also bonds metals and composites and supports dissimilar-material assemblies. Microparticles control a maximum gap of 1 mm, while a 2 to 4 minute pot life at 23 deg C provides a defined assembly window. Fixture strength develops in 5 to 10 minutes, handling strength in 20 to 25 minutes, and full cure in 24 hours at 23 deg C. Cured shear results include 15 N/mm^2 on HDPE and 6 N/mm^2 on aluminum-to-PE joints.
Key features
- Primer-Free Polyolefin Bonding: Bonds polypropylene and polyethylene without a separate primer or surface treatment.
- Controlled 1 mm Gap: Microparticles help maintain the 1 mm maximum gap during assembly.
- Fast Handling Development: Reaches typical handling strength in 20 to 25 minutes at 23 deg C.
Applications
Applications include bonding polypropylene, polyethylene, metals, composites, and dissimilar-material assemblies.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Other Properties
Curing Conditions
Additional Information
As-supplied / before-processing properties
Values identify the separate Part A and Part B components or the mixed adhesive, as stated.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Part A viscosity | 150,000 to 400,000 | mPa s | At 25 deg C; thixotropic paste |
| Part B viscosity | 20,000 to 30,000 | mPa s | At 25 deg C |
| Specific gravity | 1.0 | Part A and Part B | |
| Mix ratio | 1:1 | Part A to Part B | |
| Maximum gap fill | 1 | mm | Contains microparticles for gap control |
| Pot life | 2 to 4 | minutes | 2 g + 2 g at 23 deg C |
| Fixture time | 5 to 10 | minutes | 0.1 N/mm^2 shear strength at 23 deg C |
| Handling time | 20 to 25 | minutes | 0.3 N/mm^2 shear strength at 23 deg C |
After-processing / final-state properties
Strength values are typical cured results for the listed substrates and ISO 4587 test method.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Shear strength - polypropylene | >8 | N/mm^2 | ISO 4587; substrate failure observed |
| Shear strength - polyethylene | >7 | N/mm^2 | ISO 4587; substrate failure observed |
| Shear strength - HDPE | 15 | N/mm^2 | ISO 4587 |
| Shear strength - aluminum to PE | 6 | N/mm^2 | ISO 4587 |
| Shear strength - PTFE | 1.5 | N/mm^2 | ISO 4587 |
| Shear strength - ABS | >4 | N/mm^2 | ISO 4587; substrate failure observed |
| Shear strength - polycarbonate | >5 | N/mm^2 | ISO 4587; substrate failure observed |
| Shear strength - EPDM | >3.5 | N/mm^2 | ISO 4587; substrate failure observed |
