RESIN DESIGNS EMI-CSI-M3
Harmonization Code : 3907.30.00.15 | Epoxide resin, halogen-free
Main features
- Combined EMI Shielding and Sealing
- No-Mix Precured Rope Installation
- -40 to 150 deg C Operation
Product Description

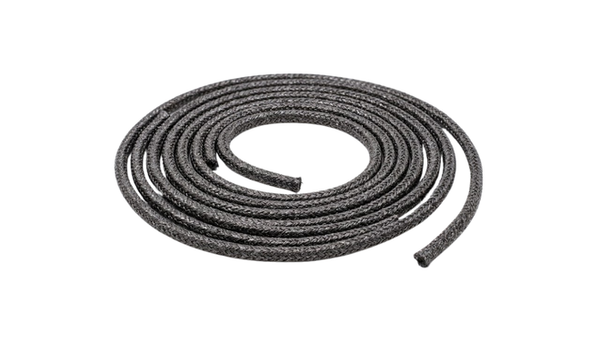

Resin Designs EMI-CSI-M3 Gel Rope Gasket is a configurable, precured silicone-gel-impregnated Monel wire-mesh rope for EMI shielding, electrical grounding, corrosion protection, environmental sealing, and pressure sealing. The construction uses knitted Monel mesh formed into a circular cross section and impregnated with silicone gel before supply. Because the gel is already cured, the gasket is installed as a preformed shielding and sealing element rather than mixed or cured in place. The family is available in multiple rope diameters and lengths and operates from -40 to 150 deg C. EMI-CSI-M3 is used where compatible assemblies require combined electrical grounding and environmental sealing.
Key features
- Combined shielding and sealing: The Monel mesh and silicone gel construction provides EMI shielding, grounding, corrosion protection, and environmental sealing.
- Precured rope construction: The silicone gel is cured before supply for installation as a preformed circular rope gasket.
- Wide operating range: The gasket family operates from -40 to 150 deg C.
Applications / Suitable for
- EMI shielding and electrical grounding.
- Corrosion protection and environmental sealing.
- Pressure sealing in compatible assemblies.
TDS, SDS & Technical Documents
Technical Specifications
Thermal Properties
Additional Information
As supplied / before processing
Rows describe the supplied rope construction and family format.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Mesh material | Monel wire mesh | - | Knitted construction |
| Mesh form | Circular rope | - | Circular cross section |
| Gel construction | Precured silicone gel | - | Impregnated into the wire-mesh rope |
| Available configuration | Multiple diameters and lengths | - | Configurable product family |
