RESIN DESIGNS EMI-CSI-M3-0125
Harmonization Code : 3907.30.00.15 | Epoxide resin, halogen-free
Main features
- Defined 0.125 in Rope Format
- 200 ft Spool Format
- Combined EMI and Environmental Sealing
Product Description

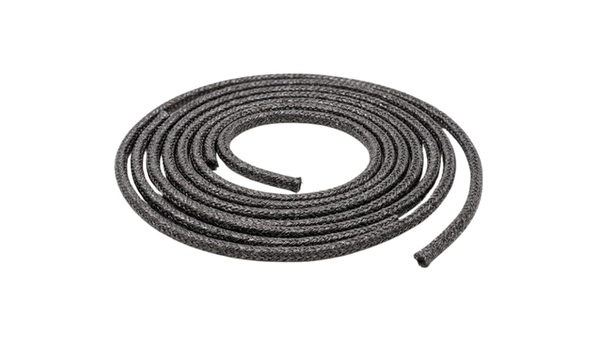

Resin Designs EMI-CSI-M3-0125 Gel Rope Gasket, 200 ft Spool is a 0.125 in diameter, precured silicone-gel-impregnated Monel wire-mesh rope for EMI shielding, grounding, corrosion protection, environmental sealing, and pressure sealing. The knitted circular mesh combines a conductive Monel structure with silicone gel that is cured before supply, so the gasket is installed without an in-place cure step. This version is supplied as a 200 ft spool, providing a defined rope diameter and package length for assembly use. The M3 family operates from -40 to 150 deg C and is used where compatible joints require combined electrical grounding and environmental sealing.
Key features
- Defined rope diameter: This variant has a nominal 0.125 in circular rope diameter.
- 200 ft spool format: The gasket is supplied on a 200 ft spool for the specified package format.
- Combined shielding and sealing: The Monel mesh and precured silicone gel provide EMI shielding, grounding, corrosion protection, and environmental sealing.
Applications / Suitable for
- EMI shielding and electrical grounding.
- Corrosion protection and environmental sealing.
- Pressure sealing in compatible assemblies.
Technical Specifications
Thermal Properties
Additional Information
As supplied / before processing
Values apply to the 0.125 in diameter, 200 ft spool.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Mesh material | Monel wire mesh | - | Knitted construction |
| Mesh form | Circular rope | - | Circular cross section |
| Gel construction | Precured silicone gel | - | Impregnated into the wire-mesh rope |
| Nominal diameter | 0.125 | in | Nominal -0125 configuration |
| Spool length | 200 | ft | Packaged spool length |
